| Product Name |
LED X-Ray View Box (Two Films) |
| Brand |
SURGITECH |
| Model |
ST-236D |
| Minimum Order Quantity |
2 Piece |
| No. of Films |
2 |
| View Area (inches) |
28 x 17″ |
| External Dimensions (L x H x T) |
866 x 512 x 45 mm |
| Thickness |
45 mm |
| Weight |
5 kg |
| LED Intensity |
>15,000 LUX |
| Light Source |
LED |
| Color Temperature |
7,000 K |
| LED Life |
100,000 HOURS |
| Input Power Supply |
AC 100-270 V (47-53 HZ) |
| Power Supply Type |
80 W |
| Mounting |
Wall & Table Mounted |
Description:

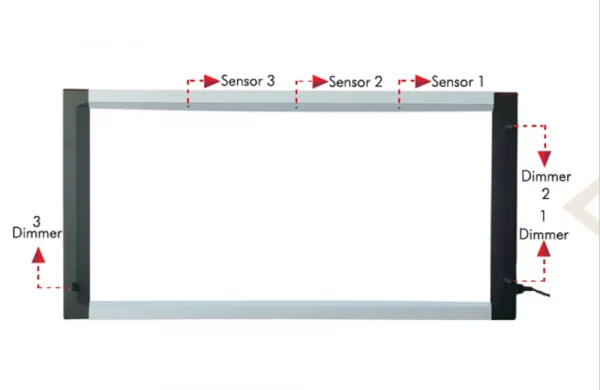

The SURGITECH ST-236D LED X-Ray View Box (Two Films) offers advanced medical imaging display with a high-brightness LED panel (>15,000 LUX), exceptional luminance uniformity above 90%, and an ultra-slim 45 mm profile. Designed for detailed image viewing, it features flicker-free, long-life LEDs (100,000 hours) and individual dimmer (intensity controller) and film sensor (auto switch) for each film slot. Wall or table mountable, the unit runs efficiently on an inbuilt 80 W power supply supporting AC 100-270 V. Green dot indicators highlight sensor positions for easy use in modular operation theatres.
